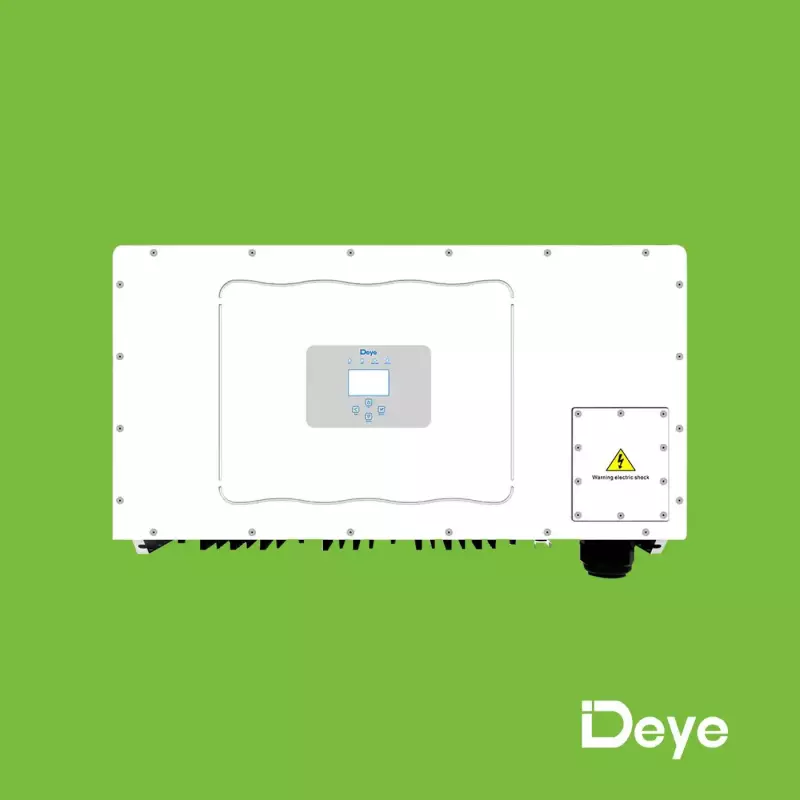

Data Sheet

#### Description:

- Cutting-edge three-phase string inverters engineered for high performance in both commercial and industrial-scale solar power installations.
- Highest Efficiency:up to 98.8%
- Eight MPPT Trackers:The eight Maximum Power Point Tracking (MPPT) channels enable precise power optimization even under varying solar irradiation conditions, ensuring each solar panel string operates at its highest potential.
- Zero Export and VSG Applications: prevents excess generated energy from being fed back into the grid and enhances grid stability
- Wide MPPT Voltage Range: from 200 V to 1000 V
- Anti-PID Function (Optional): helps protect the solar modules from performance losses, thereby extending their operational lifespan and maintaining higher power output.
- Advanced Protection Mechanisms
- Flexible Communication and Monitoring
- Robust Design: Encased in an IP65-rated enclosure, withstand in harsh environmental conditions and  operate within a wide temperature range of -25°C to +60°C, with derating above 45°C
- Compliance and Certification: Meets international safety and performance standards

Specifications:

- 8 MPP trackers, Max. effiffifficiency up to 98.8%
- Maximum PV Input Power: up to 204 kW
- Max. PV Input Voltage of 1100 V and start-up voltage of 250 V
- Rated AC Output Active Power: 136kW
- Total Current Harmonic Distortion (THDi) is kept under 3%
- Dimensions WxHxD: 1006 x 516 x 325.5mm (excluding connectors and brackets)
- Weight: 103 Kg

Deye HV String Inverter 136kW 3-Phase (SUN-136K-G01P3-EU-AM8)

Nigeria

'136k':10 '136kw':5 '3':6 'am8':13 'dey':1 'eu':12 'g01p3':11 'hv':2 'invert':4 'phase':7 'string':3 'sun':9 'sun-136k-g01p3-eu-am8':8




#### Description:

- 100% unbalanced output, maximum output up to 50% rated power for each phase
- AC couple to retrofifit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 350A
- Support storing energy from diesel generator
- 48V low voltage battery, transformer isolation design
- 6 time periods for battery charging/discharging


Please check the technical specifications in the Additional Files section.

Deye Hybrid Inverter 20kW |LV Battery Supported| (SUN-20K-SG05LP3-EU-SM2) - Three Phase

'20k':10 '20kw':4 'batteri':6 'dey':1 'eu':12 'hybrid':2 'invert':3 'lv':5 'phase':15 'sg05lp3':11 'sm2':13 'sun':9 'sun-20k-sg05lp3-eu-sm2':8 'support':7 'three':14

image (1).jfif

image (2).jfif

image (3).jfif

#### Description:

- 48V Low Voltage Battery Supported
- No. of MPP Trackers: 3
- No. of Strings per MPP Tracker: 2+2+2
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 250A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator

Please check the technical specifications in the Additional Files section.

Deye Hybrid Inverter 12kW |LV Battery Supported| (SUN-12K-SG02LP1-EU-AM3) - Single Phase

'12k':10 '12kw':4 'am3':13 'batteri':6 'dey':1 'eu':12 'hybrid':2 'invert':3 'lv':5 'phase':15 'sg02lp1':11 'singl':14 'sun':9 'sun-12k-sg02lp1-eu-am3':8 'support':7

battery (1).jpg

rack with batteries (1).jpg

BOS-A_1 (1).jpg

#### Description:

Designed to provide efficient, safe, and flexible commercial energy storage for a wide range of applications. With its intelligent design, flexible configuration options vital for scalable commercial battery storage systems, and wide operating temperature range, this module is exceptionally suited for a variety of demanding commercial battery storage applications.
- Quick & Easy Installation: Standard embedded design saves setup time
- Safe & Durable: LiFePO4 cathode for excellent safety and long cycle life
- Intelligent BMS: Protects against over-charge/discharge, over-current, and extreme temperatures
- Eco-Friendly: Non-toxic and non-polluting materials
- Flexible & Scalable: Connect multiple modules in parallel to increase capacity and power
- Wide Operating Temperatures: Performs reliably from -20°C to 55°C

Specifiactions:

- Cell Chemistry: LiFePO4
- Module Energy: 7.68 kWh
- Module Nominal Voltage: 38.4 V
- Module Capacity: 200 Ah
- Module Dimensions (W/D/H): 576 x 601 x 135 mm
- Module Weight: Approximately 65 kg

Deye High Voltage LiFePO4 Battery (BOS-A) 7.68 kWh

'7.68':9 'batteri':5 'bos':7 'bos-a':6 'dey':1 'high':2 'kwh':10 'lifepo4':4 'voltag':3

17 (3).png

18 (3).png

#### Description:

- Safer
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Reliable
- Support high discharge power. IP20, natural cooling, wide temperature range: -20℃ to 55℃.
Flexible
- Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Convenient
- Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
- Eco-Friendly
- Use environmental protection materials, the whole module non-toxic, pollution-free.
- Three Mounting Methods
- 19inch Standard design, support rack-mounted, wall-mounted, and floor-mounted, saving installation space.

Specs:

- Model: Deye SE-G5.1
- Battery Chemistry: LiFePO4
- Nominal Capacity: 100 Ah
- Nominal Voltage: 51.2 V
- Operating Voltage: 44.8 V to 57.6 V
- Nominal Energy: 5.12 kWh
- Scalability: Maximum of 64 units in parallel (327 kWh total)
- Charge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)
- Discharge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)
- Depth of Discharge (DoD): Recommended 80%
Dimension: 440 mm x 540 mm x 133 mm (W x D x H)
- Weight: Approx. 44 kg
- Communication Port: CAN2.0, RS485
- IP Rating: IP20
- Operating Temperature: Charge: 0 to 55℃; - Discharge: -20 to 55℃
- Storage Temperature: 0 to 35℃
- Relative Humidity: 95%
- Cycle Life: ≥6000 cycles

.

Deye Low Voltage LiFePO4 Battery 5.12 KWH

'5.12':6 'batteri':5 'dey':1 'kwh':7 'lifepo4':4 'low':2 'voltag':3

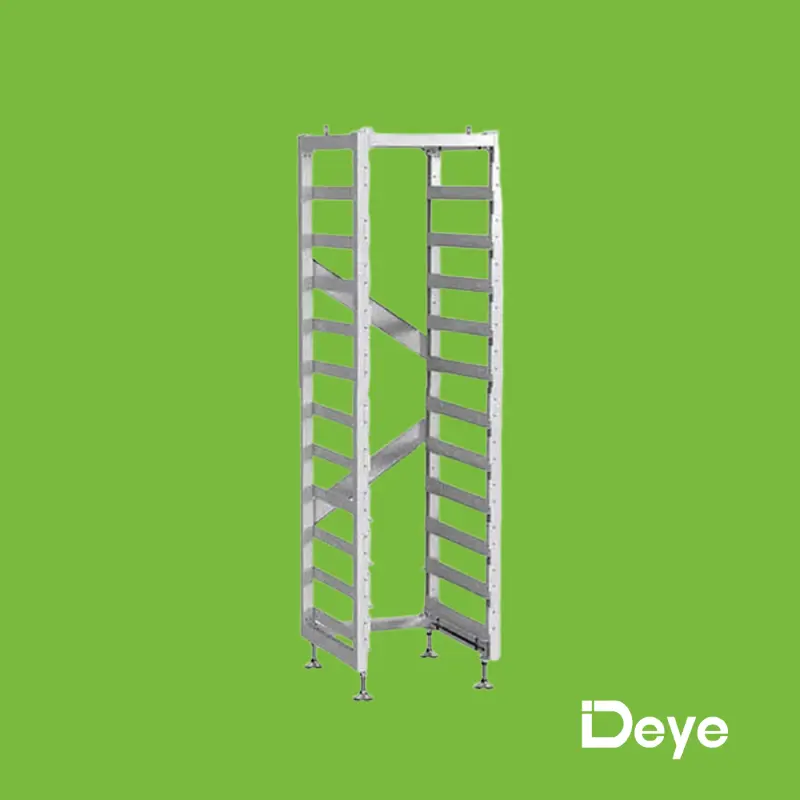

#### Description:

- Standard Rack for BOS-A HV Batteries
- Can install 13pcs Batteries / 1pcs Controller
- Rack Dimensions: 610x610x2350mm
- Weight Approximate 55kg

Deye HV Battery BOS-A Standard Rack 14 Layers

'14':9 'batteri':3 'bos':5 'bos-a':4 'dey':1 'hv':2 'layer':10 'rack':8 'standard':7

DEYERACK-3U-H (2).png

#### Description:

- Standard 19inch rack
- Can install 12 pcs batteries
- 1 pc High Voltage Battery cluster control box
- Dimension (W/D/H) 589*590*2240mm
- Weight Approximate 85kg

.

Deye HV Battery 3U-Rack

'3u':5 '3u-rack':4 'batteri':3 'dey':1 'hv':2 'rack':6

DEYEINV50K-SG01HP3-E (2).png





#### Description:

- Three Phase
- 4 MPPT
- HV Battery Supported
- 100% unbalanced output；each phase
- AC couple to retrofifit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid
- operation; Support multiple batteries parallel
- Max. charging/discharging current of 100A
- High voltage battery, higher efficiency
- 6 time periods for battery -charging/discharging
- Support storing energy from diesel generator
- Max. DC Input Power (kW): 65
- Rated AC Output and UPS Power (kW): 50
- Rated DC Input Voltage (V): 600
- Start-up Voltage (V): 180

.

Deye Hybrid Inverter 50kW |HV Battery Supported| (SUN-50K-SG01HP3-EU-BM4) - Three Phase

'50k':10 '50kw':4 'batteri':6 'bm4':13 'dey':1 'eu':12 'hv':5 'hybrid':2 'invert':3 'phase':15 'sg01hp3':11 'sun':9 'sun-50k-sg01hp3-eu-bm4':8 'support':7 'three':14




#### Description:

- Three Phase Hybrid Inverter
- 80 kW
- 6 MPPT
- HV Battery Supported
- Smart Monitoring Platform: immediate shutdown remotely when accident occurs.
- 100% unbalanced output
- AC couple to retroﬁt existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 160A
- High voltage battery, higher efﬁciency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator


Please check the technical specifications in the Additional Files section.

Deye Hybrid Inverter 80kW |HV Battery Supported| (SUN-80K-SG02HP3-EU-EM6) - Three Phase

'80k':10 '80kw':4 'batteri':6 'dey':1 'em6':13 'eu':12 'hv':5 'hybrid':2 'invert':3 'phase':15 'sg02hp3':11 'sun':9 'sun-80k-sg02hp3-eu-em6':8 'support':7 'three':14

DEYEBATBOS-GM51 (2).png

11 (25).png

#### Description:

- Convenient
- Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance.
Safe and reliable
- Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without  charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
- Intelligent BMS
- It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
- Eco-friendly
- Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade(optional), remote up grade(Compatible with Deye inverter).
- Wide temperature
- Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
- LiFePO4 Cell Chemistry
- Module Energy (kWh): 5.12
- Module Nominal Voltage (V): 51.2
- Module Capacity (Ah): 100
- Working Temperature (°C): Charge: 0-55/Discharge: -20~55
- Status Indicator: Yellow: Battery High Voltage Power On / Red: Battery System Alarm
- Storage Temperature (°C): 0~35

.

Deye High Voltage LiFePO4 5.12 KWH Battery (BOS-G)

'5.12':5 'batteri':7 'bos':9 'bos-g':8 'dey':1 'g':10 'high':2 'kwh':6 'lifepo4':4 'voltag':3

image (4).jfif

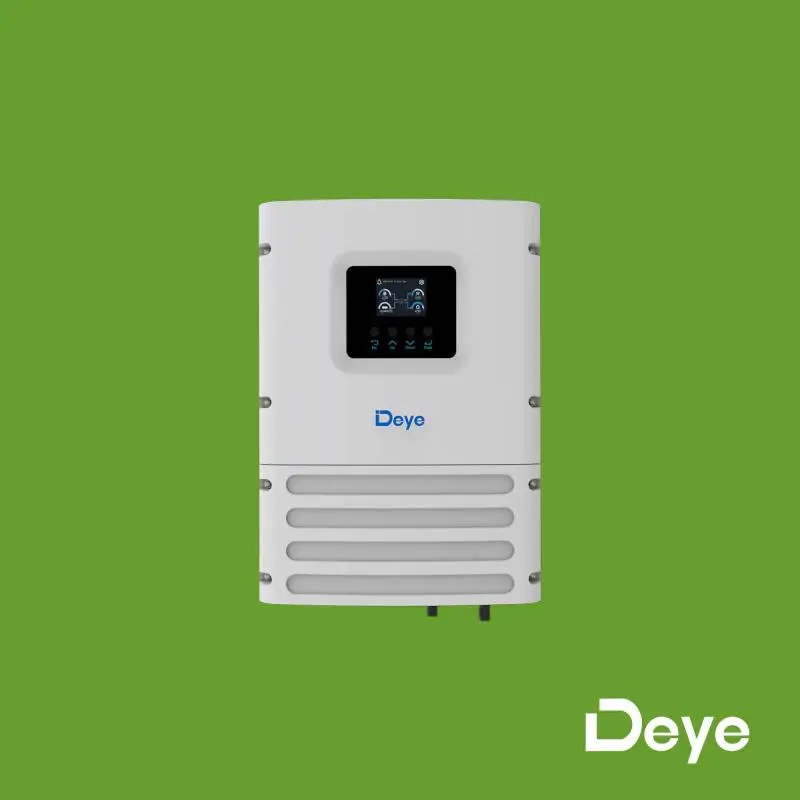

#### Description:

- 48V Low Voltage Battery Supported
- No. of MPP Trackers: 2
- No. of Strings per MPP Tracker: 1+1
- High Performance: Support a peak output of 2 times the rated
power for up to 10 seconds
- Outdoor-Ready: IP65-rated, built to withstand tough environment
- Durable & Reliable: Independent cooling design reduces dust accumulation and extends lifespan
- High Efficiency: 4ms UPS-level switching time
- Smart MPPT Technology: 2 MPPTs, supports 1.6x PV oversizing (18A+18A), optimizing energy from panels at various angles
- Long-Term Assurance
- Parallel Scalability: Supports 16 pcs parallel (off-grid)
- Generator Integration: Support storing energy from diesel generator



Please check the technical specifications in the Additional Files section.

Deye Off-Grid Inverter 6kW |LV Battery Supported| (SUN-6K-OG01LP1-EU-AM2) - Single Phase

'6k':12 '6kw':6 'am2':15 'batteri':8 'dey':1 'eu':14 'grid':4 'invert':5 'lv':7 'off-grid':2 'og01lp1':13 'phase':17 'singl':16 'sun':11 'sun-6k-og01lp1-eu-am2':10 'support':9

DEYEINV12K-SG04LP3-E (2).png

#### Description:

- 48V Low Voltage Battery Supported
- No. of MPP Trackers: 2
- No. of Strings per MPP Tracker: 2+1
- 100% unbalanced output, each phase; Max.
output up to 50% rated power
- DC couple and AC couple to retrofit existing
solar system
- Max. 10pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 240A
- 48V low voltage battery, transformer isolation
design
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator

Please check the technical specifications in the Additional Files section.

Deye Hybrid Inverter 12kW |LV Battery Supported| (SUN-12K-SG04LP3-EU) - Three Phase

'12k':10 '12kw':4 'batteri':6 'dey':1 'eu':12 'hybrid':2 'invert':3 'lv':5 'phase':14 'sg04lp3':11 'sun':9 'sun-12k-sg04lp3-eu':8 'support':7 'three':13

Rack 2 w.png

Rack 2 w 2.png

Rack 2 w 3.png

Rack 2 w 4.png

#### Description:

- Standard Rack for BOS-A HV Batteries
- Can install 10pcs Batteries + 1pcs Controller
- 2 units can install 21 pcs Batteries + 1 pcs Controller
- Rack Dimensions: 610x610x1900mm
- Weight Approximate 47kg

Deye HV Battery BOS-A Standard Rack 11 Layers

'11':9 'batteri':3 'bos':5 'bos-a':4 'dey':1 'hv':2 'layer':10 'rack':8 'standard':7

DEYEBATSE-G51-PRO-B (2).png

#### Description:

- Safer
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Reliable
- Support high discharge power. IP20, natural cooling, wide temperature range: -20℃ to 55℃.
Flexible
- Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Convenient
- Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
- Eco-Friendly
- Use environmental protection materials, the whole module non-toxic, pollution-free.
- Three Mounting Methods
- 19inch Standard design, support rack-mounted, wall-mounted, and floor-mounted, saving installation space.

Specs:
- LiFePO4 Battery Chemistry
- Master LED Indicator
- Built-in Circuit Breaker: 125A 2P, 60Vdc
- Capacity (Ah): 100
- Nominal Voltage (V): 51.2
- Operating Voltage (V): 43.2~57.6
- Nominal Energy (kWh): 5.12
- Usable Energy (kWh)1: 4.6
- Humidity: 5%~95%

.

Deye Low Voltage LiFePO4 Battery (SE-G5.1Pro-B) 5.12 KWH

'1pro':10 '1pro-b':9 '5.12':12 'b':11 'batteri':5 'dey':1 'g5':8 'kwh':13 'lifepo4':4 'low':2 'se':7 'se-g5':6 'voltag':3

DEYEHVB750V100A-EU (2).png

#### Description:

- Operating Voltage: 120～750Vdc
- Nominal Charge/Discharge Current: 100A
- Max.Charge/Discharge Current: 125A
- DC Input Rating: 12±2%V/4.15A
- Operating Temperature Range: -20~65°C
- Ingress Protection: IP20

.

DEYE High Voltage Battery Controller BOS-G Series (HVB750V/100A)

'batteri':4 'bos':7 'bos-g':6 'control':5 'dey':1 'g':8 'high':2 'hvb750v/100a':10 'seri':9 'voltag':3

#### Description:

- 48V Low Voltage Battery Supported
- No. of MPP Trackers: 2
- No. of Strings per MPP Tracker: 2+2
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 190A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator

Please check the technical specifications in the Additional Files section.

Deye Hybrid Inverter 8kW |LV Battery Supported| (SUN-8K-SG05LP1-EU-SM2) - Single Phase

'8k':10 '8kw':4 'batteri':6 'dey':1 'eu':12 'hybrid':2 'invert':3 'lv':5 'phase':15 'sg05lp1':11 'singl':14 'sm2':13 'sun':9 'sun-8k-sg05lp1-eu-sm2':8 'support':7

DEYEINV8K-SG04LP3-EU (2).png

#### Description:

- Three Phase
- 2 MPPT
- LV Battery Supported
- 100% unbalanced output, each phase; Max. output up to 50% rated power
- AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid
- operation; Support multiple batteries parallel
- Max. charging/discharging current of 240A
- Support storing energy from diesel generator
- 48V low voltage battery, transformer - isolation design
- 6 time periods for battery charging/discharging
- Max. DC Input Power (kW): 10.4
- Rated AC Output and UPS Power (kW): 8
- Rated PV Input Voltage (V): 550 (160~800)
- Start-up Voltage (V): 160

.

Deye Hybrid Inverter 8kW |LV Battery Supported| (SUN-8K-SG04LP3-EU) - Three Phase

'8k':10 '8kw':4 'batteri':6 'dey':1 'eu':12 'hybrid':2 'invert':3 'lv':5 'phase':14 'sg04lp3':11 'sun':9 'sun-8k-sg04lp3-eu':8 'support':7 'three':13

cluster (1).jpg

#### Description:

The BOS-A-PDU-2 serves as the high-voltage control or cluster control unit for Deye’s BOS-A battery system.

Specifiactions:

- Nominal Energy: 7.68 kWh
- Operating Voltage: 235.2～306.6 Vdc
- Nominal Charge/Discharge Current: 100A
- Max.Charge/Discharge Current: 100A
- Operating Temperature Range: 0~35°C
- Ingress Protection: IP20
- Dimensions: 601.5x520x135mm
- Weight: 70 Kg

DEYE High Voltage Battery Cluster Controller BOS-A Series (BOS-A-PDU-2)

'2':15 'batteri':4 'bos':8,12 'bos-a':7 'bos-a-pdu':11 'cluster':5 'control':6 'dey':1 'high':2 'pdu':14 'seri':10 'voltag':3



#### Description:

- Exceptional Efficiency: Maximum efficiency up to 98.8%, , minimizing losses and maximizing the return on investment for solar installations.
- Multiple MPPT Channels: 6 Power Point Tracking (MPPT) channels
- Wide MPPT Voltage Range: 200-850V
- Advanced Safety and Protection Features: DC polarity reverse connection protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection, and ground fault current monitoring
- PID Mitigation and Zero Export Functionality: helps to maintain the performance of the solar panels over time
- Robust Design: Encased in an IP65-rated enclosure, withstand in harsh environmental conditions and  operate within a wide temperature range of -25°C to +60°C, with derating above 45°C
- Comprehensive Grid Compliance
- Versatile Communication and Monitoring Options: supports various communication interfaces such as GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, and RS232.
- Lightweight and Compact: (approximately 81 kg), with dimensions of 824×516×312.7 mm
- Grid Support and Power Quality

Specifications:

- Rated AC Output Active Power: 100kW
- Maximum PV Input Power: Up to 150kW
- Grid Connection Form: 3L/N/PE
- Rated Output Voltage: 220/380V, 230/400V
- THD: Total Current Harmonic Distortion <3%
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Max. 6 MPP trackers, Max. efficiency up to 98.8%
- Dimensions: 824×516×312.7 mm
- Weight: approximately 81 kg

Deye HV String Inverter 100kW 3-Phase (SUN-110K-G03)

'100kw':5 '110k':10 '3':6 'dey':1 'g03':11 'hv':2 'invert':4 'phase':7 'string':3 'sun':9 'sun-110k-g03':8

ShopFilters
