Description:

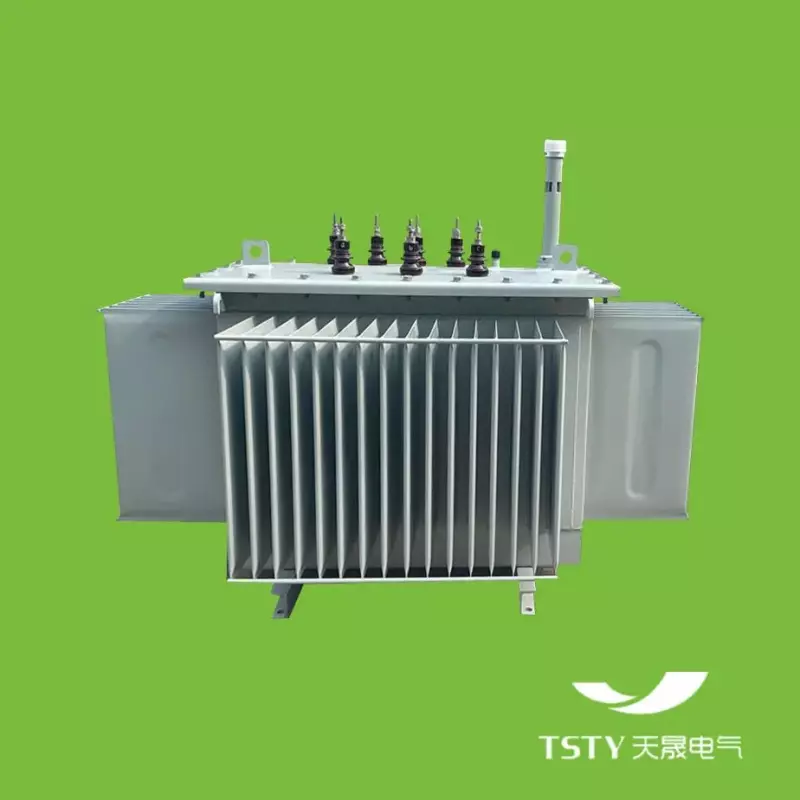

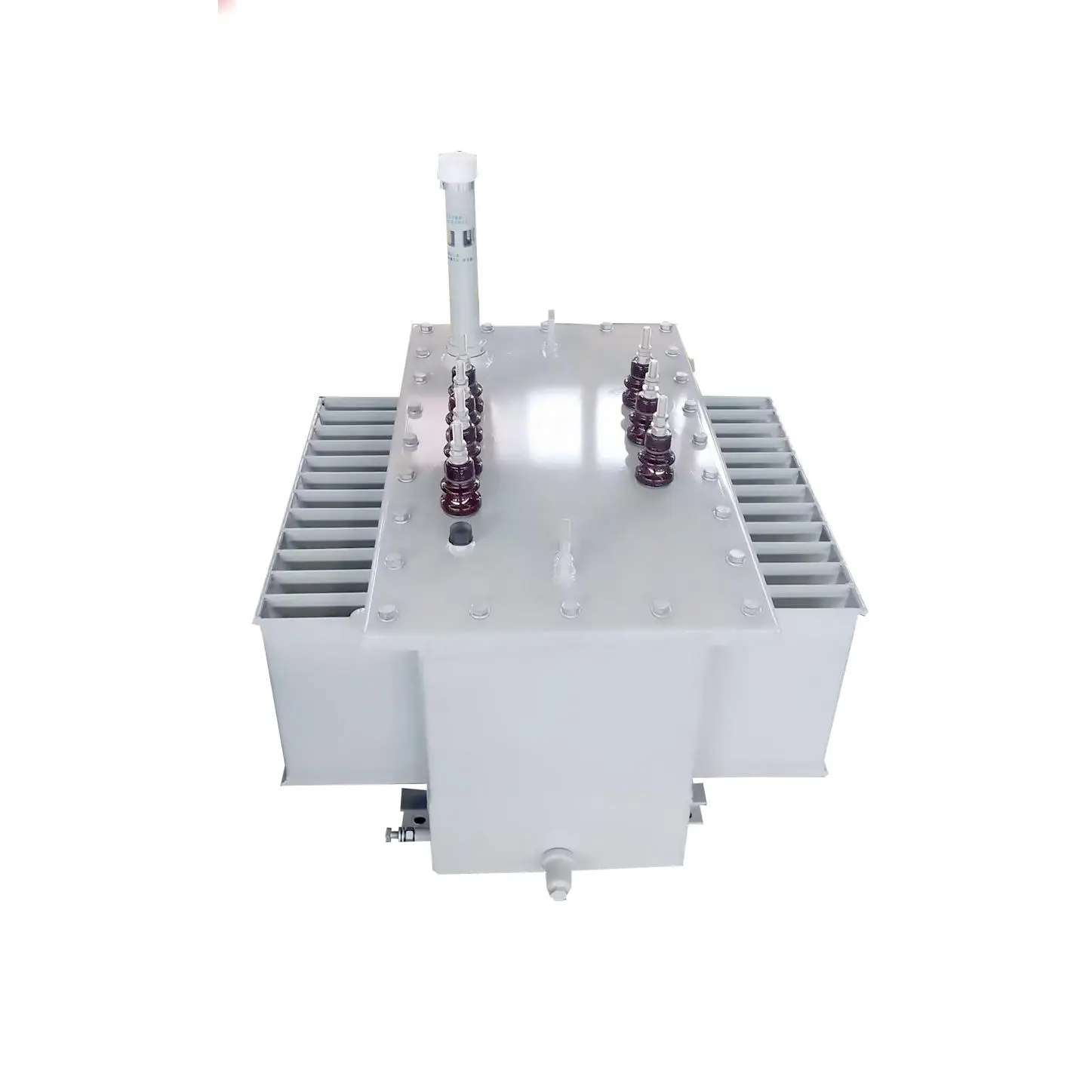

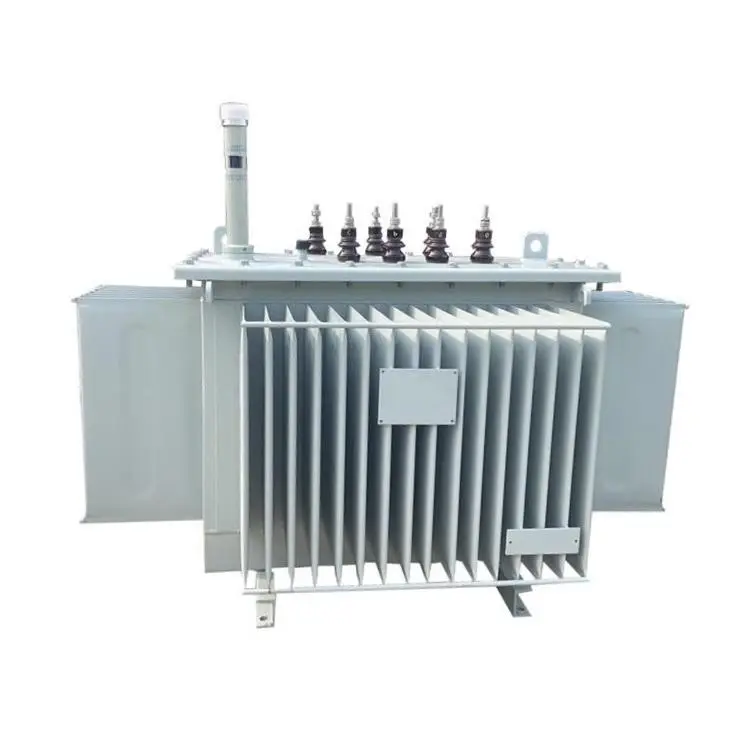

The TSTY Isolation Transformer 600kVA is engineered to deliver safe, stable, and efficient power distribution for heavy-duty industrial and commercial applications. With a primary and secondary voltage of 400V/400V, this transformer ensures effective electrical isolation, enhanced safety, and protection of sensitive equipment from power disturbances.

Built with high-quality materials and robust design, the SG-M-600kVA model is ideal for critical operations that demand continuous and reliable performance. It minimizes electrical noise, prevents ground loop issues, and provides clean power for systems that require the highest levels of stability and protection.

Whether for manufacturing plants, data centers, or large-scale facilities, the TSTY 600kVA Isolation Transformer is a dependable choice for safeguarding operations and optimizing energy performance.

Specifications:

Specification	Value
Rated Capacity （KVA）	600
H.V	0.4 KV
L.V	0.4 KV
Short Circuit Impedance	4.5%
Off load Losses	1170((±15%)
On load Losses	6100((±15%)
H.V Current (A)	909.33
L.V Current (A)	909.33
Winding Material	Copper to Copper
Dimension	153510401170 mm
Weight	1740 kg
Frequency	50HZ
Vector Group	Dyn11
Phase	3phase
Type	Oil-immersed
Oil	Mineral oil
Core	Silicon steel sheet
Cooling Type	ONAN
Oil level thermometer	Equipped
Oil level indicator	Equipped
Pressure relief device	Equipped
Warranty	2 years
Service Lifetime	15-20 years
