Description:

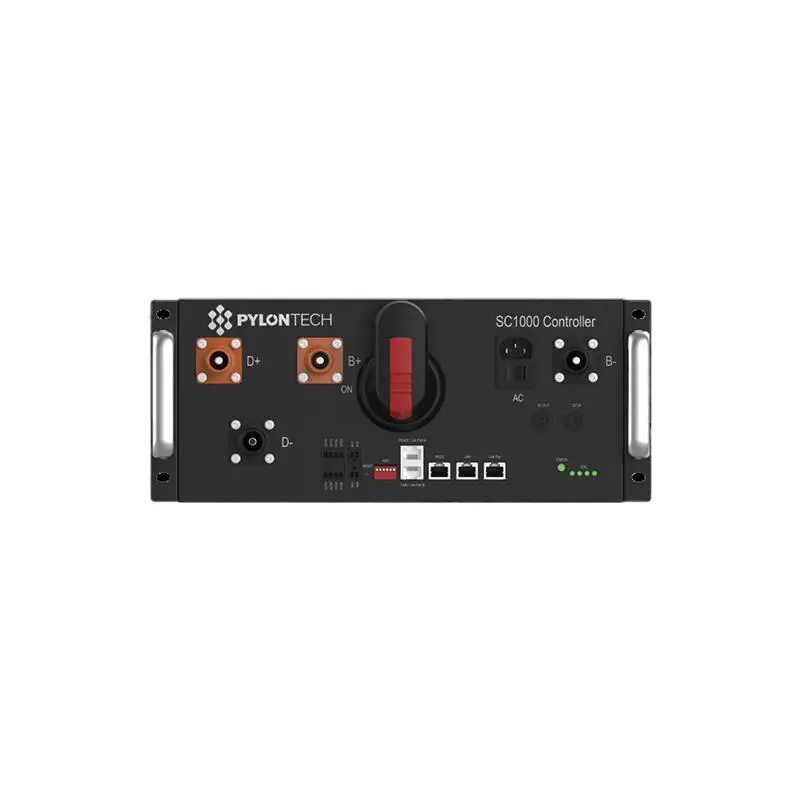

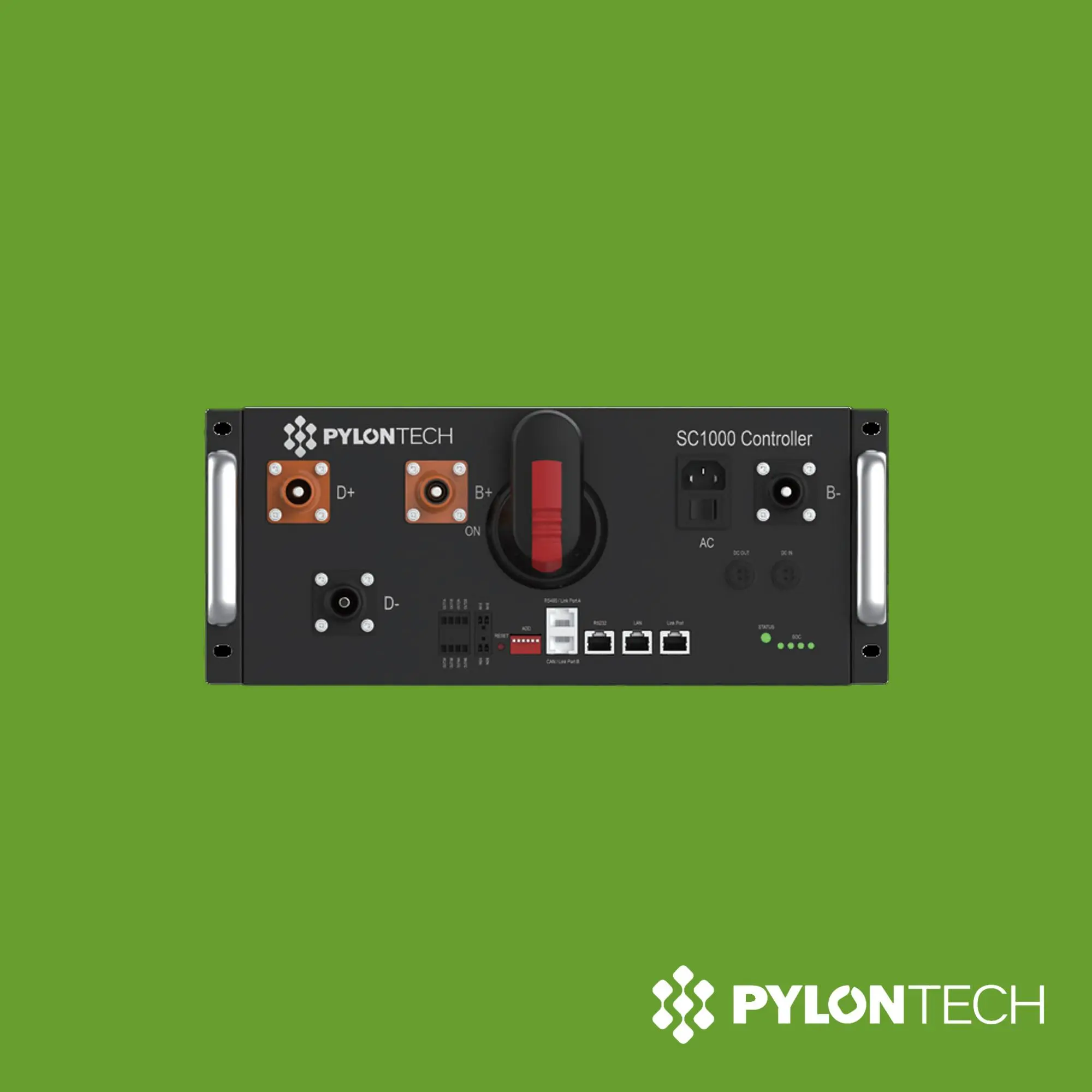

High-voltage Control Box module from Pylontech, designed for scalable energy storage systems with high efficiency, long cycle life, and reliable performance.

Specifications:

• Ac supply: 230Vac/50Hz/1.3A
• System Operation Voltage (Vdc): 0~1000
• Operation Current (Max.)(A): 148
• Self-consumption Power-Relay Off (W): 12
• Self-consumption Power-Relay On (W): 19
• Dimension(WDH, mm): 330x628x150.5
• Communication: MODBUS RTU/CAN/LAN
• Protection Class: IP20
• Weight(kg): 13
• Operation Life: 15+
• Operation Temperature: -20~65
• Storage Temperature: -40~80

For inquiries, please reach out to [email protected]
